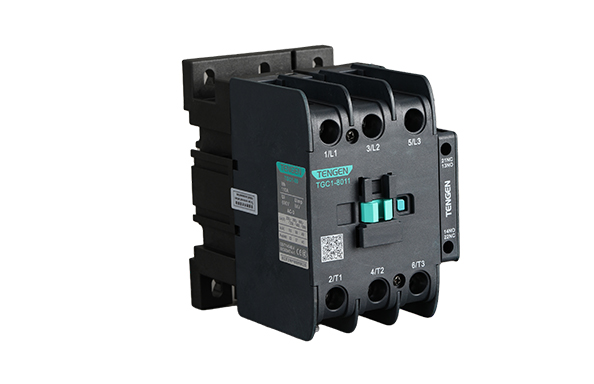

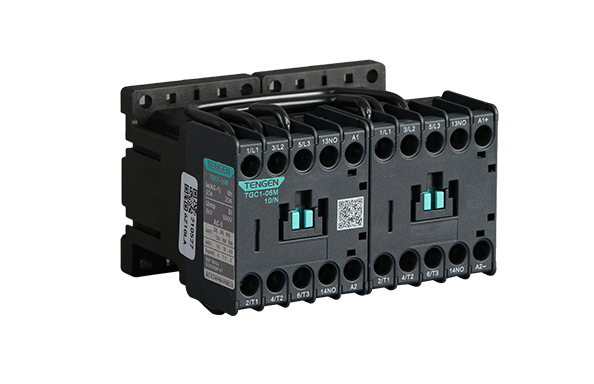

The TGC1 series AC contactor feature with exquisite appearance and small shape, mainly used in AC 50Hz (or 60Hz) power system with a rated operating voltage up to 690V,with a rated working voltage of 380V under AC-3 use category, and with a rated current up to 95A for remote power-on and power-off of circuit, and can be combined with the appropriate thermal relay to form an electromagnetic starter for protection of circuit that overload may occur. The contactor is suitable for frequent start and control of AC motor.
This product complies with standard IEC 60947-4-1

Overview

Model TGC1
    -06
TGC1
    -09
TGC1
    -12
TGC1
    -18
TGC1
    -25
TGC1
    -32
TGC1
    -38
TGC1
    -40
TGC1
    -50
TGC1
    -65
TGC1
    -80
TGC1
    -95
Number   of poles 3   Poles
Rated   operating voltage Ue V 220/230380/400,   660/690
Rated operating current Ie380V
    400V
AC-3   A 6912182532384050658095
AC-4 A 2.63.557.78.5121418.524283744
660V
    690V
AC-3   A 3.86.68.9121822223439424949
AC-4 A 11.523.84.47.58.99121417.321.3


Normal operation and installation conditions:

1.1 Ambient temperature (around the equipment): Allowable working temperature: -35ºC~+70ºC; normal working temperature: -5ºC~+40ºC; when the working environment temperature is higher than +40ºC, by considering that the allowable limit temperature rise of the product will be reduced, the rated working current must be reduced (the derating coefficient sees Table below), and the quantity of the contactors mounted in the standard assembly shall be decreased, otherwise the product may be damaged, the service life may be shortened, and the working reliability may be reduced, and furthermore the product action range may be affected; when the working environment temperature is lower than 5°, considering that the insulation and lubrication grease may be congealed at too low ambient temperature resulting in product action failure, please contact the manufacturer and user for design or use.

1.2 Installation conditions: The inclination between the mounting surface and the vertical surface is not more than ±22.5ºC,and the installation category is Class III;

1.3 Pollution level: 3

1.4 Altitude: Not more than 2000m

1.5 Atmospheric conditions: When the maximum temperature is +70ºC, the relative humidity of the air does not exceed 50%.Higher relative humidity is allowed at lower temperatures, for example, up to 90% at 20ºC. Special measures should be taken for condensation occurred occasionally due to temperature changes;

1.6 The product should be installed and used in a place where there is no obvious shaking, impact and vibration.

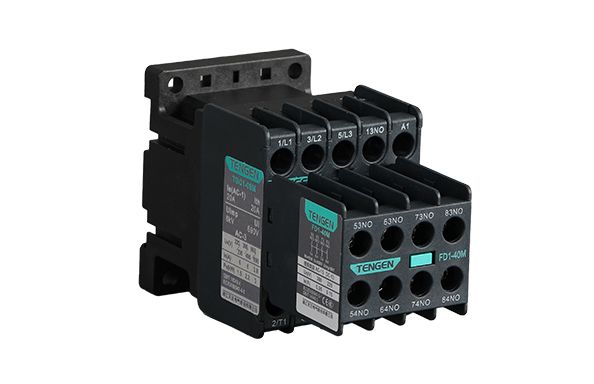

1.7 Auxiliary contact type

    10: 1NO+0NC(for 06~38A)    01: 0NO+1NC(for 06~38A)    11: 1NO+1NC(for 09~95A)
