According to the mode of transportation, elevators are divided into vertical elevators and escalators; According to the mode of use, elevators are divided into passenger elevators, medical elevators and passenger elevators, Freight elevator, sightseeing elevator, escalator, moving sidewalk, etc.

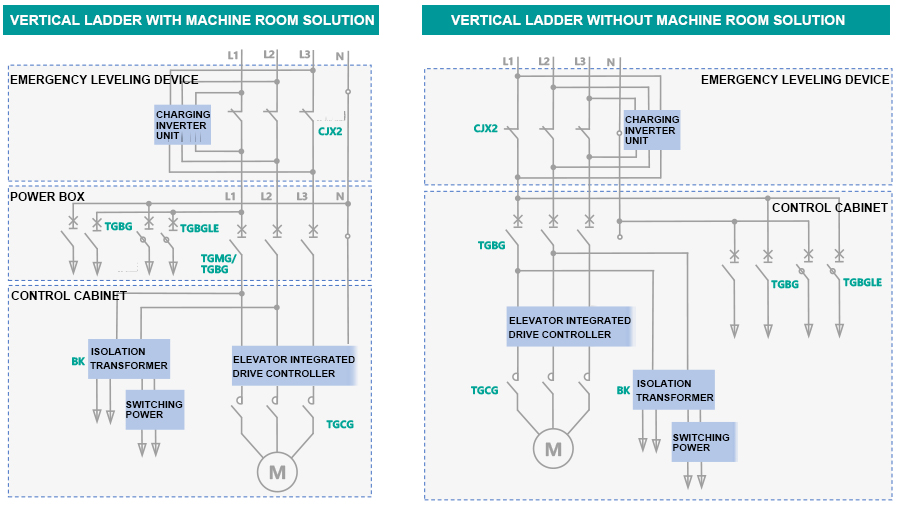

Vertical ladder (with machine room) solution:
There is a machine room vertical ladder solution, which is mainly used in medium and high-rise buildings and above. The medium and high-speed vertical ladder with speed of 1m / s and above, and the power of the control cabinet is generally 70kw and below. It has the characteristics of convenient maintenance, low noise and good heat dissipation
Vertical ladder (inorganic room) solution:
Inorganic room vertical ladder solution is mainly applied to medium and low-speed vertical ladders in medium and high-rise buildings and below. The speed is 2.5m/s and below, and the power of control cabinet is 37KW and below. It has the characteristics of space saving, flexible installation and low construction cost.
Rated current: 12.5A-1250A Pole number: 3P/3P+N/4
Rated current: 16A-250A Pole number: 2P/3P/4P Ra
Rated current: 16A-63A Poles: 1P+N/2P/3P/3P+N/4P
Rated current: 6A-63A Pole number:2P/4P Icu: 6kA
Rated current: 18/38/95A Rated insulation voltage
Power grade: 0.75-400KW Voltage grade: 220V/380V
