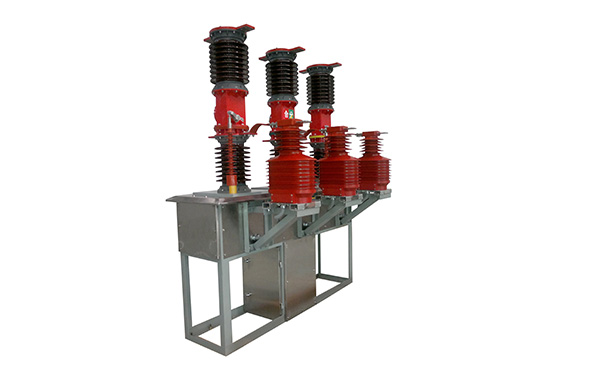

1.1 The three-phase AC 50Hz outdoor switchgear is suitable for 35kV power system used in urban network and rural network for making and breaking load current, overcurrent and short-circuit current, and for other similar applications.
1.2 Standard
GB1984 "High-voltage alternating-current circuit-breakers" GB/T 11022 "Common specifications for high-voltage switchgear and controlgear standard" DL/T402 "Technical conditions for ordering the high-voltage AC circuit breaker"
Working environment conditions:
1.1 Ambient air temperature: -40℃~+45℃, and maximum daily temperature difference is 25K;
1.2 Relative humidity: The daily mean is not greater than 95%, and the monthly mean is not greater than 90%;
1.3 Altitude: ≤2,000 meters;
1.4 Wind speed: Not exceed 35m/s (equivalent to wind pressure 700 Pa);
1.5 Pollution degree: 3, 4;
1.6 Icing thickness: 10mm;
1.7 Seismic capacity: Horizontal acceleration: 0.3 g m/s2; vertical acceleration: 0.2 g m/s2;
1.8 Installed in places where there are no fire, explosion, chemical corrosion, and frequent severe vibration.
For any requirements out of the normal working conditions, please contact the manufacturer.
Rated current | A | 1250, 1600, 2000 | ||||
Rated frequency | Hz | 50 | ||||
Rated insulation level | 1 minute power frequency withstand voltage | Dry test | kV | Phase to phase, phase to earth 95 / 185 open contacts 118 | ||
Wet test | 80 | |||||
Lighting impulse withstand voltage | Phase to phase, phase to earth / open contacts 215 | |||||
(peak) | ||||||
Rated short-circuit breaking current | kA | 20 | 25 | 31.5 | ||
Rated short-circuit making current (peak) | kA | 50 | 63 | 80 | ||
Rated peak withstand current | kA | 50 | 63 | 80 | ||
4s thermal stability current | kA | 20 | 25 | 31.5 | ||
Rated operation sequence | O-0.3s-CO-180s-CO | |||||
Closing time | kV | ≤ 60 | ||||
opening time | A | ≤ 120 | ||||
Rated short-circuit breaking current ON/OFF times | Times | 30 | ||||
Mechanical life | 10,000 | |||||
1 minute power frequency withstand voltage of control circuit and auxiliary circuit | V | 2,000 | ||||
Rated operating voltage and auxiliaray voltage | A | AC/DC220, DC110 |
