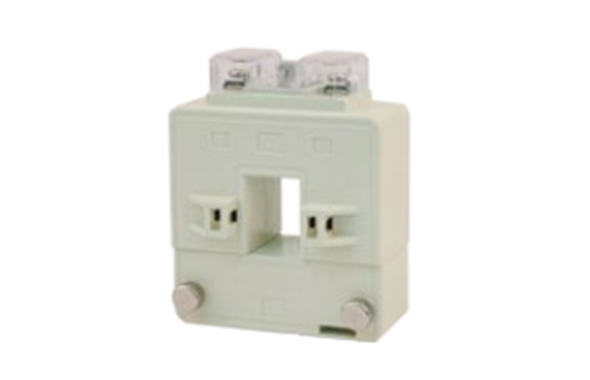

BH-K series transformer is specially designed for convenient installation in the circuit system or power grid transformation system. It can be installed without disconnecting cable or busbar.
This product is suitable for AC line with rated frequency 50Hz and rated working voltage 0.66kV and below for current and electric energy measurement.
Working environment conditions:
1.1 Installation site: Indoors.
1.2 Ambient humidity: -5℃-+40℃; daily mean does not exceed +30℃.
1.3 Altitude: Not exceed 1,000 meters.
1.4 Atmospheric conditions: The relative air humidity at the maximum temperature +40℃ does not exceed 50%, and the permissible relative humidity at a lower temperature do not exceed 80%.
1.5 There is no serious dirty in atmospheric air, and gas and there is no enough conductive dust to cause
metal corrosion and insulation damage in medium.
1.6 There is no violent vibration and bumps at installation site.
1.7 There is no direct sunlight, rain and snow erosion or severe mildew at the installation site.
| BH-30*20K | 100/5 | 1.5 | 1 | |||
| 150/5 | 1.5 | 1 | ||||
| 200/5 | 2.5 | 1.5 | 1 | |||
| 250/5 | 2.5 | 2.5 | 1 | |||
| 300/5 | 5 | 5 | 2.5 | 1 | ||
| 400/5 | 5 | 5 | 2.5 | 1 | ||
| BH-60*40K | 300/5 | 2.5 | 1.5 | 1 | ||
| 400/5 | 2.5 | 2.5 | 1.5 | 1 | ||
| 500/5 | 5 | 2.5 | 2.5 | 1 | ||
| 600/5 | 5 | 5 | 2.5 | 1 | ||
| 750/5 | 5 | 5 | 2.5 | 1 | ||
| 800/5 | 10 | 5 | 5 | 1 | ||
| 1000/5 | 10 | 10 | 5 | 1 | ||
| 1200/5 | 10 | 10 | 5 | 1 | ||
| 1500/5 | 10 | 10 | 5 | 1 | ||
| BH-80*50K | 600/5 | 2.5 | 2.5 | 1 | ||
| 750/5 | 5 | 2.5 | 2.5 | 1 | ||
| 800/5 | 10 | 5 | 2.5 | 1 | ||
| 1000/5 | 10 | 10 | 5 | 1 | ||
| 1200/5 | 10 | 10 | 5 | 1 | ||
| 1500/5 | 10 | 10 | 5 | 1 | ||
| May-00 | 15 | 10 | 10 | 1 | ||
| May-00 | 15 | 10 | 10 | 1 |
