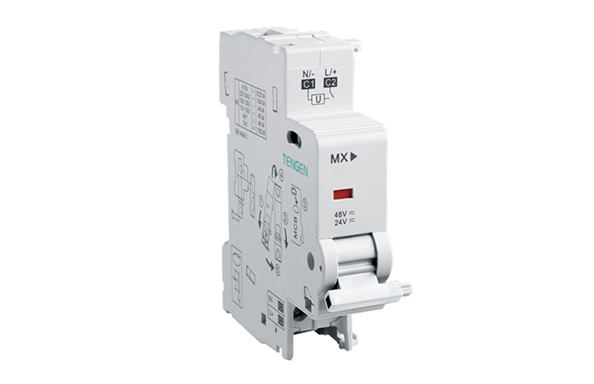

TGB1N-MX1 shunt release(hereinafter referred to as release)is mainly assembled with the TGB1N series miniature circuit breaker with frame rated current 125A at the right sidesuitable for AC 50/60Hz with rated voltage up to 400V for remote shunt tripping operation.
Available Standards:IEC 60947-1
Inquiry
Certificate
| Basic Parameters | |||
| Modules | 2(18mm) | ||
| Working voltage(V AC) | 415 | 220-240 | 100-130 |
| Trip power consumtion(VA AC) | 625 | 184 | 44 |
| Working voltage(V AC) | 110-130 DC | 48 AC/DC | 24 AC/DC |
| Trip power consumtion(VA AC) | 45 | 48 | 185 |
| Shunt life | 500 | ||
| Max.wiring area(mm²) | 2.5 | ||
TGBIN-OF auxiliary contact is used in the AC 50/60Hz line wi...
TGB1N-SD(for 63 shell frame)alarm contact is used in the AC ...
TGBIN-MX+OF shunt and auxiliary release (hereinafter referre...
TGB1N-MV(for 63 shell frame)overvoltage release is mainly us...
TGBIN-MN(for 63 shell frame)No-voltage release (hereinafter ...
